Hardware Configuration - Auto Provisioning - Snom

Snom phones can be auto provisioned by VoIPstudio VoIP service. This greatly simplifies device deployment and configuration.

If your phone was purchased from VoIPstudio, it has been already pre configured and there is no need to provision it. Please refer to Phone edit section to assign extensions. If your phone was not purchased from VoIPstudio, please perform a Factory Reset described in Factory Reset section above and Firmware upgrade.

You can obtain your phone IP by following the steps described in Find phone IP section above.

Add Phone to VoIP Studio Customer control Panel as Indicated below before Proceeding.


Figure 26.1 Phone add.

To add a phone purchased from the third party vendor:

Click Add button located in Phones panel. 1. Select your device model. 2. Enter your device MAC address - five groups of digits and letters separated by a colon sign for example: 00:1a:4d:5c:25:8d. Usually printed on the label located at the back of the device. 3. Name Device as required. 4. Click Submit button. 5. Copy and Paste URL into Phone Configuration as shown below.

Once a supported devices is added to our system you can obtain auto-provisioning URL, enter it into device settings and manage the phone via your web based control panel.

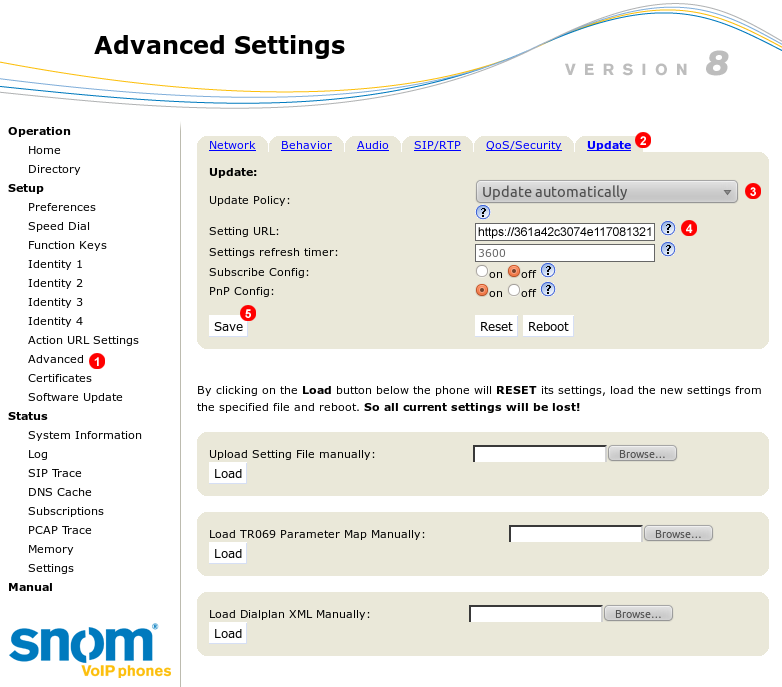

Figure 26.2 Snom phones auto provisioning

To auto provision Snom phone login into web interface of the device and follow steps below:

  1. Click Advanced link in the left sidebar.
  2. Select Update.
  3. Make sure Update Policy is set to Update automatically
  4. Copy and paste your Profile URL (see (2) in Figure 13.6 above) into field (4).
  5. Click Save button.

After a short while your Snom phone will reboot and obtain configuration data from VoIPstudio provisioning service.
