Hardware Configuration - Manual Configuration - Linkvil

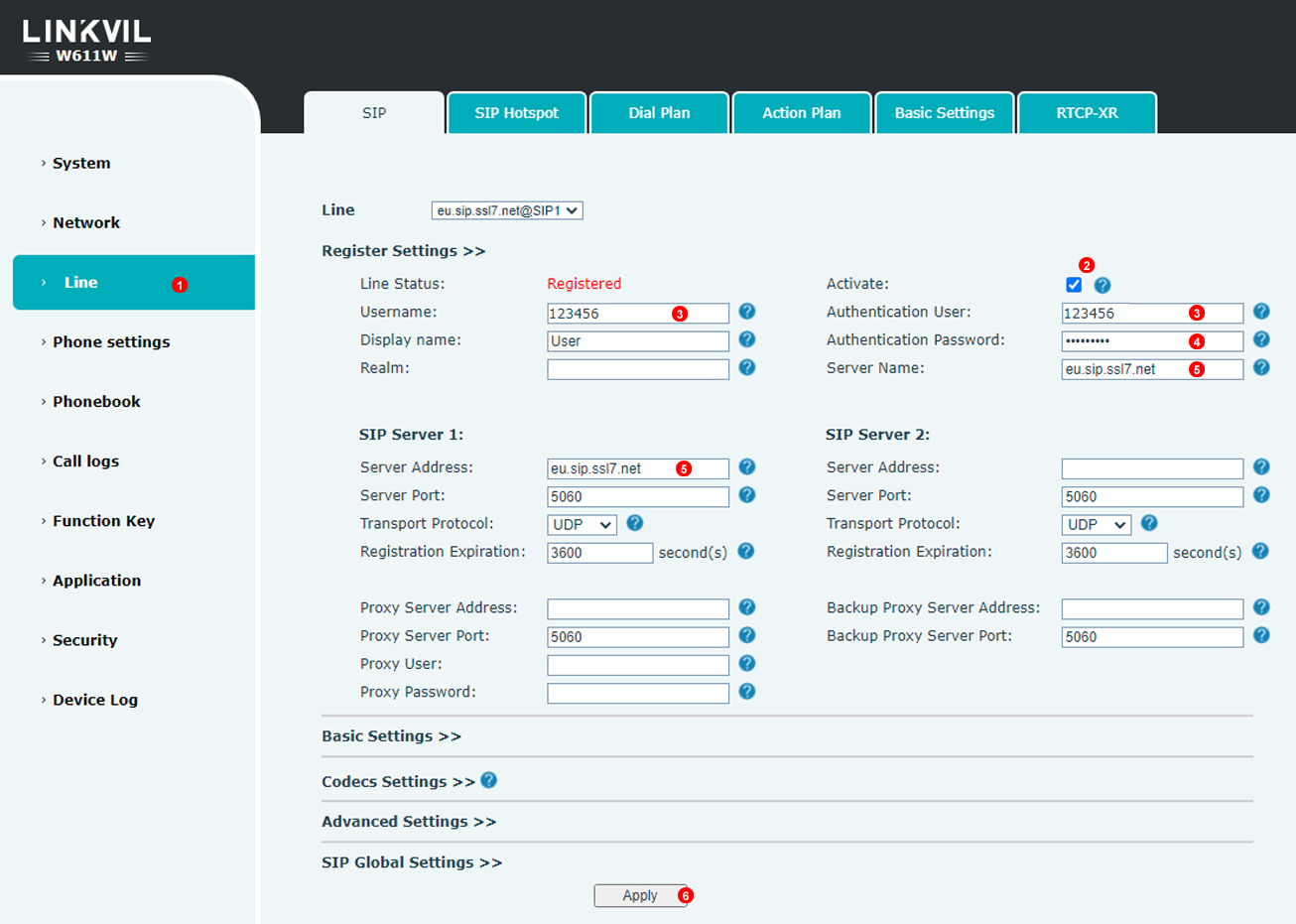

Figure 52.1 Linkvil manual configuration

To configure Linkvil phone to work with VoIPstudio service login into web interface of the device and follow steps below:

  1. Click Line section in the left menu.
  2. Enter your SIP user name into fields (2).
  3. Enter your SIP password into field (3).
  4. Enter your SIP domain into fields (4).
  5. Make sure Active check box is selected.
  6. Cilck Apply

After a short while Linkvil phone will connect to VoIPstudio servers, it will show as Registered and you will be able to start making and receiving calls.

Aditional adjustments

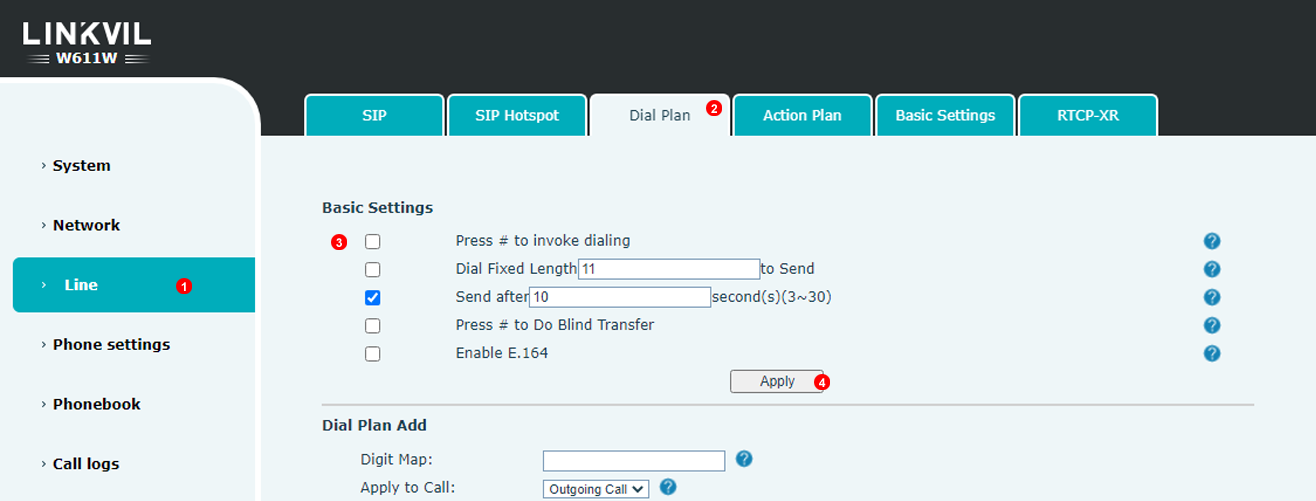

Figure 52.2 Linkvil Dial Plan

It is recommended to enable the use of # Key as a regular number. For example to allow accessing Voice Mail by dialling #445.

  1. Under Line section.
  2. Navigate to Dial Plan tab.
  3. Disable check box Press # to invoke dialling
  4. Click Apply

Linkvil adjunt Time & Date

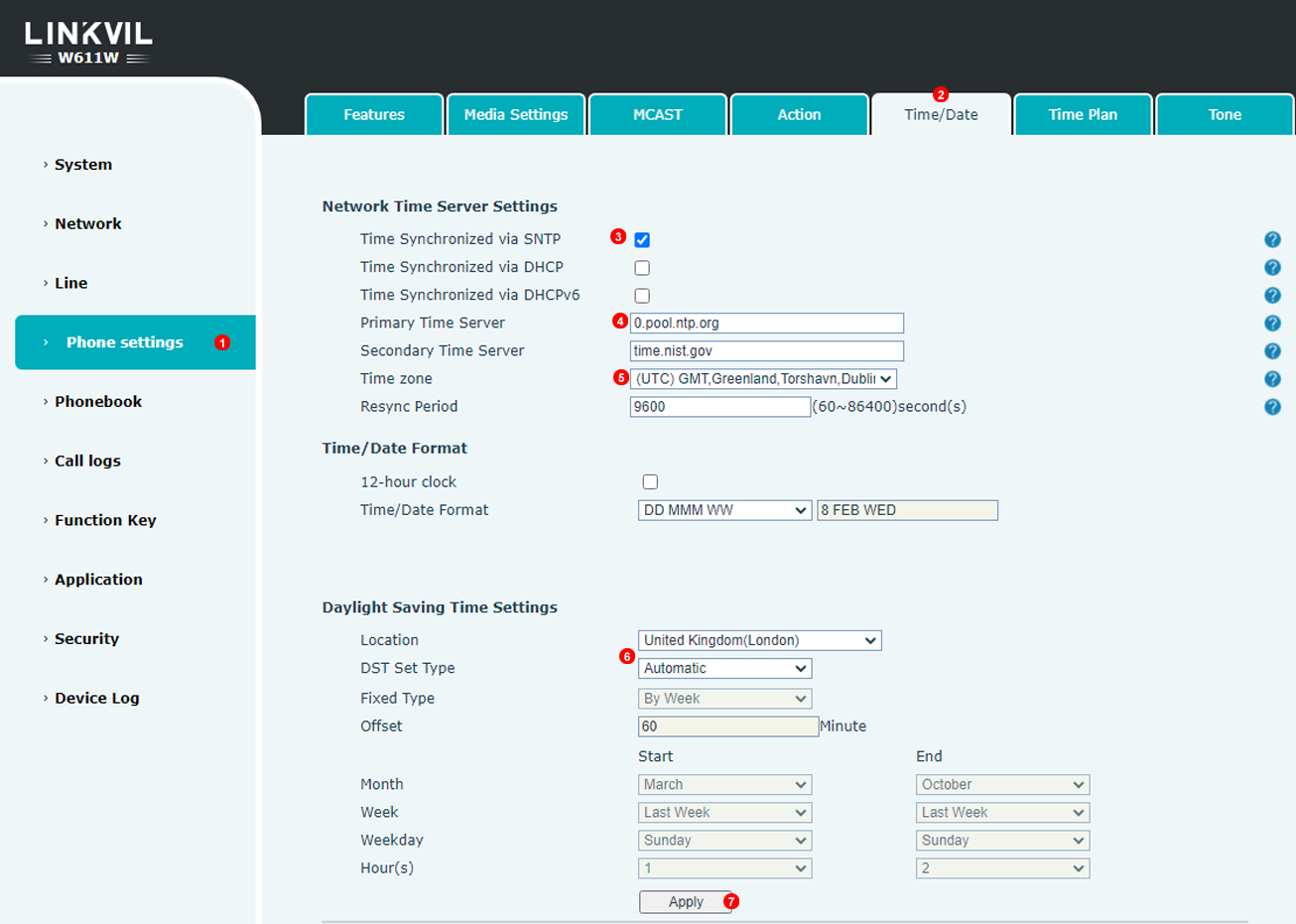

Figure %IMG_PHONES_LINKVIL_TIMEDATE Linkvil manual Time & Date
  1. Under Phone settings section.
  2. Navigate to Time/Date tab.
  3. Make sure Time synchronization via NTP is enabled.
  4. Make sure there is at least one Time Server for synchronization.
  5. Select your Time Zone
  6. Adjust your Daylight Saving time settings.
  7. Click Apply
