Third party softphones - X-Lite 3

In order to set up X-Lite 3 with VoIPstudio download installation package from http://www.counterpath.com website, obtain your VoIPstudio SIP account details as shown in Figure 8.1 above and follow instruction below:

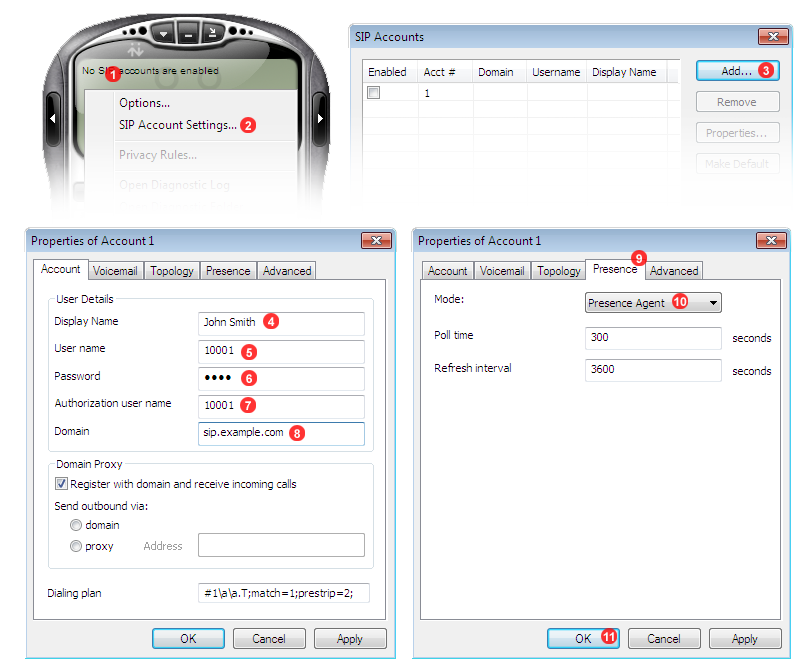

Figure 15.1 X-Lite 3 account set up.
  1. Right click on X-Lite screen.
  2. Select SIP Account Settings... option (2) from context menu.
  3. Click Add... button (3) in SIP Accounts window.
  4. Enter your name into field (4).
  5. Enter your SIP Username from SIP Info panel
  6. Enter your SIP Password into field (6).
  7. Enter your SIP Username into field (7).
  8. Enter SIP domain into field (8).
  9. Switch to Presence tab (9).
  10. Select Presence Agent from drop down list (10).
  11. Click OK button.

After a short while X-Lite will connect to our servers and you will be able to start making and receiving calls.
