Third party softphones - X-Lite 4

In order to set up X-Lite 4 with VoIPstudio download installation package from http://www.counterpath.com website, obtain your VoIPstudio SIP account details as shown in Figure 8.1 above and follow instruction below:

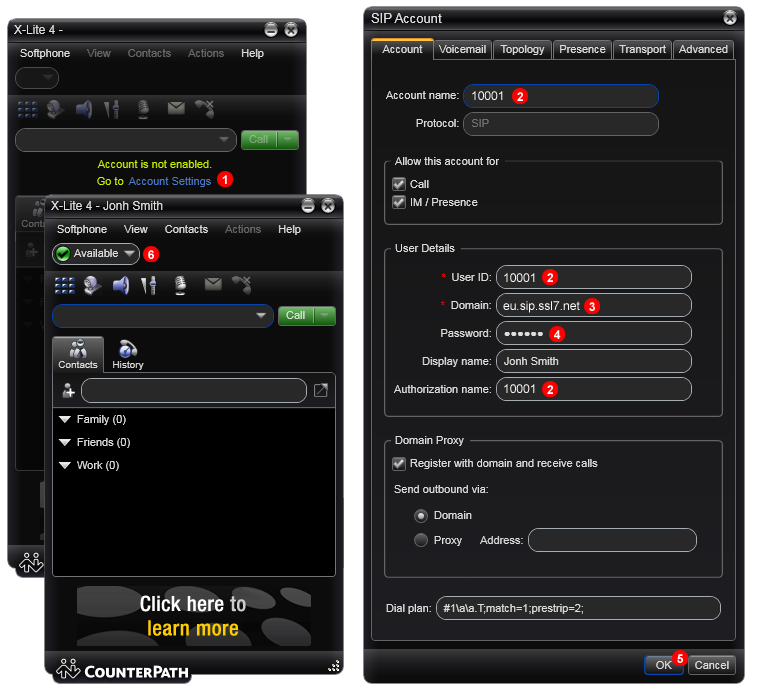

Figure 16.1 X-Lite 4 account set up.
  1. Click Account Settings in main X-Lite window.
  2. Enter your SIP username into field (2).
  3. Enter your SIP domain into field (3).
  4. Enter your SIP password into field (4).
  5. Click OK button.

After a short while X-Lite will connect to our servers and you will be able to start making and receiving calls.
