Exploring the Power of VoIP Gateway Solutions

VoIP phone service background

In today’s digital landscape, businesses constantly seek innovative solutions to streamline communication processes and enhance productivity. One solution that has gained significant traction is Voice over Internet Protocol (VoIP) technology.

By harnessing the power of the internet to transmit voice calls, VoIP offers a cost-effective and flexible alternative to traditional phone systems. However, to fully unlock the potential of VoIP, businesses need to leverage VoIP gateway solutions.

These powerful tools bridge VoIP networks and traditional telephony systems, enabling seamless integration and enhancing communication capabilities.

In this article, we will delve into the benefits of VoIP gateway solutions and explore how they can help your business communication.

From cost savings and scalability to improved call quality and extensive features, VoIP gateway solutions can transform your communication. Join us as we uncover the untapped power of VoIP and discover how these gateway solutions can take your business to new heights.

What is a VoIP Gateway?

A VoIP Gateway is a hardware device designed to convert telephony conversations from different sources into voice-over IP. It is important to note that this device can process both ways, so converting VoIP traffic into any other Telephony signal is possible.

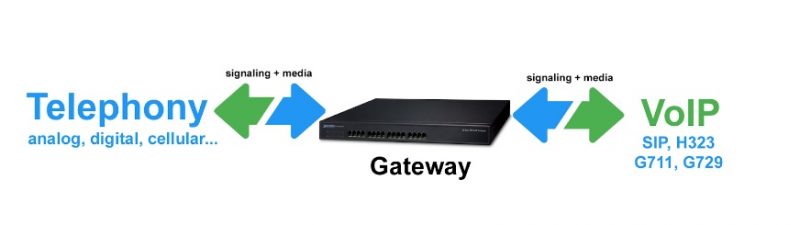

VoIP gateway

How does the VoIP gateway work?

A VoIP gateway interface between the traditional public switched telephone network (PSTN) and VoIP networks. It converts analog voice signals into digital packets that can be transmitted over the internet.

When a call is made from a traditional or VoIP phone, the gateway translates the signal, allowing it to be transmitted over the internet or the PSTN, depending on the destination. It enables businesses to connect their existing phone systems with VoIP networks, ensuring compatibility and smooth communication flow.

It is important to note that the gateway must take care of telephone media and signaling and convert it into voice-over IP with proper VoIP media codec and corresponding signaling protocol.

VoIP Gateway types

VoIP gateways come in different forms, including the following:

Hardware-based gateways

Hardware-based gateways are physical devices that connect to the PSTN through traditional telephone lines or digital interfaces. They often have multiple ports to accommodate several phone lines simultaneously.

Software-based gateways

On the other hand, software-based gateways are virtual solutions that run on servers or software applications. They offer greater scalability and flexibility, as they can be easily deployed and managed in a cloud-based environment.

More common gateway VoIP codecs

From the bridge’s VoIP side, the most common VoIP signaling protocols are SIP and H.323, while the most used codecs for voice coding are G711 and G729.

On the other side of the gateways, allowed sources are:

Analog PSTN lines and devices

These gateways could connect traditional regular telephones to a Voice over IP phone system or your VoIP phone system to the PSTN analog lines. Therefore, the analog VoIP gateway includes the FXO gateway and FXS gateway.

  • FXS Gateway (Foreign eXchange Subscriber Interface): connects legacy phones, fax machines, and phone systems to VoIP infrastructure.
  • FXO Gateway (Foreign eXchange Office Interface): Connect analog telephone lines or PBX analog extension interface to IP.

Digital PSTN lines

Digital telephone lines were very popular during the 1990s and early 2000. This technology is also known as ISDN (Integrated Services Digital Network). This technology was meant to provide multiple services under a single connection.

For example, Primary rate (PRI) E1/T1 lines could transport 24 voice channels. It caused many PBX to use these lines to interconnect them to the PSTN network. When migrating a PBX to VoIP, you may need to keep these ISDN connections so that VOIP ISDN gateways will be useful.

Cellular Gateway

GSM gateways convert GMS/3G/4G/5G cellular connection to SIP and provide it as a trunk to an IP PBX system and the other way around.

Cellular Gateway

What are VoIP gateways used for?

It’s very useful, for example, to allow existing traditional lines to be connected to VoIP PBX. If your company has some legacy ISDN connection and you’d like to connect it to VoIP PBX, these VoIP Gateways will help with this. But they have more benefits we will discover later in this post.

It is important to note that compared to Analog Telephony Adapters ATA, which usually convert from 1 to 8 conversations simultaneously, these devices are larger scale and support much more telephony technologies. ATA adapters typically convert only analog lines into VoIP.

If you are looking into providing VoIP lines to a single analog device, like a phone, door opener, fax, or alarm system, you should look to ATA devices and refer to our configuration manuals.

Benefits of a VoIP Gateway

As you may learn, there are many beneficial scenarios for these VOIP gateways. Let’s see the main ones:

Cost efficiency

Under some scenarios, it might be cheaper to use gateways rather than change existing phone infrastructure.

For example, many hotels have traditional analog PBX with hundreds of analog extensions, but currently, phone providers are switching their public phone lines to VoIP. The problem is that this old PBX needs to be fixed to connect to these new IP lines.

Using a gateway to convert IP lines into Analog or ISDN would allow hotels to keep running their traditional phone platform.

Some providers still use Analog and ISDN lines, so when our company jumps into VoIP, we use a gateway to connect traditional lines to the VoIP PBX platform.

Improved flexibility and scalability

Another key benefit of VoIP gateways is the flexibility and scalability they offer. With traditional phone systems, adding new phone lines or expanding the system can be a complex and expensive process.

However, with VoIP gateways, adding new lines or expanding the system is as simple as adding a new user to the network. The scalability of VoIP allows businesses to easily accommodate growth or seasonal fluctuations in communication needs, without significant upfront investments.

Moreover, VoIP allows businesses the flexibility to work from anywhere. Employees can make and receive calls using their mobile devices, laptops, or desktop computers, as long as they have an internet connection. This is particularly beneficial for remote workers or businesses with multiple locations, as it enables seamless communication regardless of physical distance.

Allows to keep traditional telephony connections active

Established companies with several locations may already have existing connections between their locations.

When these companies migrate their PBX into VoIP, they may like to keep traditional telephony connections active. Using gateways under each side may be a solution.

Allows having some fallback lines

Keep some “fallback” lines using different technology rather than VoIP lines.

When deploying phone lines over VoIP, we need to rely on a broadband connection and the stability of the phone lines. To have some fallback, we could deploy alternative broadband connections or use telephony technology like an ISDN line.

This way, we will achieve a “hybrid” approach that, for some scenarios, might be more reliable.

Seamless integration with existing systems

You can connect VoIP PBX to some other communications infrastructure. For example, if you want to connect your PBX to the GSM network directly, you may need to use one of these gateways.

Security and reliability of VoIP Gateway Solutions

Security and reliability are crucial considerations when it comes to communication systems. VoIP gateway solutions offer robust security measures to protect voice calls and data transmission. They often include encryption protocols, firewalls, and authentication mechanisms to safeguard communication from unauthorized access and eavesdropping.

Additionally, VoIP gateway solutions ensure high levels of reliability by leveraging distributed architecture. In a network outage or system failure, calls can be automatically rerouted to backup systems or alternative communication channels, minimizing downtime and ensuring uninterrupted communication.

Phone Security

What to consider when choosing a VoIP gateway?


Ensure the solution accommodates your business’s current and future communication needs.

Physical port quantity

Choose the gateway that has the required number of ports of each type.

Physical port compatibility

Make sure ports on both sides use the same interface connectors.

Features and functionalities

Evaluate the features and functionalities offered by the gateway, and determine if they align with your business requirements.

VoIP protocol support

Make sure signaling and media protocols for the SIP gateway and PBX are compatible. Consider the vendor’s support and maintenance level, including software updates, troubleshooting, and technical assistance.

Calls load

Find your busy hour use and consider increasing that threshold between 10% to 25%.


As you browse for manufacturers, you will find many models and prices. You will need to find the device that matches your needs and has a better cost ratio.


Assess the security measures the gateway solution implements to protect your communication from potential threats.

Biggest VoIP Gateway Manufacturers in the industry

Here is a short list of the biggest VoIP Gateway Manufacturers in the industry.

Common use cases of VoIP gateways in VoIPstudio

VoIPstudio is a cloud VoIP PBX platform, and using VoIP gateways is not very popular. As many local and international providers connect our VOIP servers to PSTN networks, your service availability is ensured.

You may need to use a gateway if you have some analog or ISDN business line and face difficulties porting numbers over the VoIPstudio platform.

Deploying a gateway on your premises and forwarding inbound calls from these PSTN lines to VoIPstudio using a gateway may help to enroll your number on VoIPstudio.

The other most common use is when you need to connect some traditional analog device over VoIP. For example, imagine you have some traditional alarm system or another device communicating over a 56K modem, and you must keep these devices operational. Using analog gateways or ATA adapters may help to get this working again.

Embracing the future of telecommunication with VoIP Gateway Solutions

As businesses adapt to the digital era, communication plays a vital role in their success. VoIP gateway solutions offer a bridge between traditional telephony systems and VoIP networks, enabling businesses to leverage the power of VoIP technology fully.

From cost savings and scalability to improved call quality and extensive features, VoIP gateway solutions can transform how you communicate. By embracing these solutions, businesses can enhance productivity, collaboration, and flexibility while reducing costs and integrating seamlessly with existing systems.

Unlock the power of VoIP gateway solutions and take your business communication to new heights.

Need some more help or info about VoIP Gateways? Contact VoIPstudio right now, and one of our agents will assit you.
