Auto Provisioning - Aastra

Aastra IP phones can be auto provisioned by VoIPstudio VoIP service. This greatly simplifies device deployment and configuration.

Note: if your phone was purchased from VoIPstudio, it has been already pre configured and there is no need to provision it. Please refer to Phone edit section to assign extensions.

Note: if your phone was not purchased from VoIPstudio, please perform a Factory Reset described in Factory Reset section above and Firmware upgrade.

You can obtain your phone IP by following the steps described in Find phone IP section above.

Aastra phone auto provisioning - MAC address

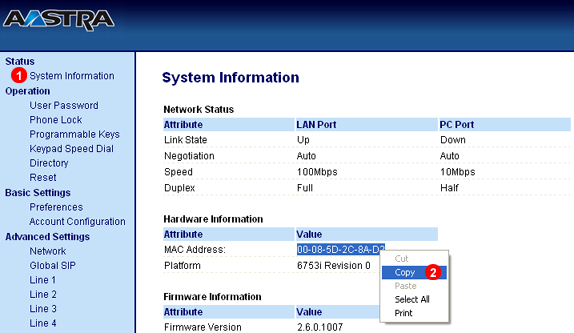

Figure 9.1 Aastra phone auto provisioning - MAC address

To auto provision Aastra phone login into web interface of the device and follow steps below:

  1. Click System information link in the left sidebar.
  2. Copy MAC Address into a clipboard.

Aastra phone auto provisioning - Configuration Server

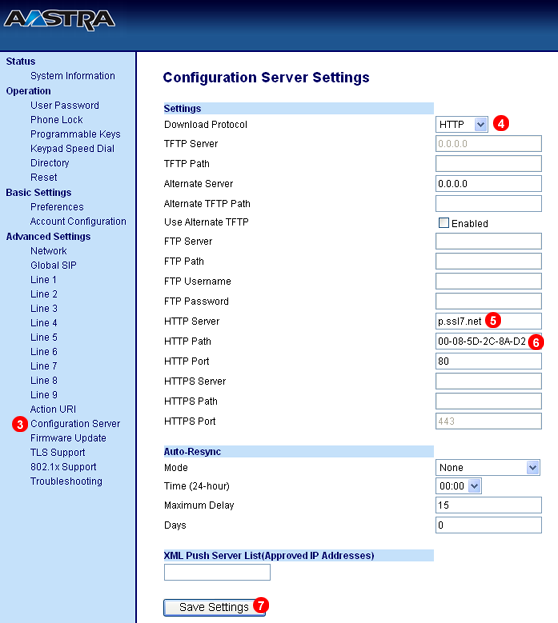

Figure 9.2 Aastra phone auto provisioning - Configuration Server
  1. Click Configuration Server link in the left sidebar.
  2. Select HTTP as Download Protocol.
  3. Enter p.ssl7.net into HTTP Server field.
  4. Paste MAC Address copied in step 2 into HTTP Path field.
  5. Click Save Settings button.

Aastra phone auto provisioning - Reset

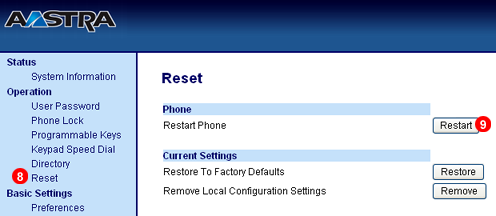

Figure 9.3 Aastra phone auto provisioning - Reset
  1. Click Reset link in left sidebar.
  2. Click Restart button.

After a short while your Aastra phone will reboot and obtain configuration data from VoIPstudio provisioning service.
